The types of vehicles that operate today are vastly different from those of 20 - 30 years ago when the big vehicles were using heavy steel chains to pull them out of sticky situations. Today, vehicles have changed, agricultural and construction vehicles are now equipped with sophisticated technology, and new designs in suspension, and traction control. Yet even with all of this modern tech, these vehicles still get into trouble!
A simple yet effective solution is to keep a heavy-duty recovery tow strap in your vehicle. Even if the frequency of use is minimal, having the option to be able to get yourself out of some pretty tricky situations is crucial, its quick, effective, and much cheaper than calling out the heavy wreckers to rescue you!!
Everybody knows tow straps are available for cars, SUVs, and other smaller vehicles, but not many people realize that options exist for even the biggest of commercial vehicles. With that in mind, do you know how much weight a tow strap can pull?
Let's find out!
Here are the factors that determine the capacity of a tow strap
Material & Quality – Different polyester grades offer varying tensile strengths.
Webbing Width – A wider strap generally has a higher break strength.
Number of Layers – Single-ply vs. double-ply significantly affects strength.
Stitching Techniques – The way a strap is stitched impacts durability and load-bearing capacity.
Tensile Strength & Webbing: The Foundation of Tow Straps
Most high-quality tow straps are made from polyester, but not all polyester webbing is the same, a variety of grades are available, These different grades have varying tensile strength, which is usually measured per inch of webbing. For example, let’s compare three 6-inch-wide, single-ply tow straps:
Tow Strap |
Tensile Strength (per inch) |
Minimum Break Strength (MBS) |
Strap 1 |
2,000 lbs/inch |
12,000 lbs (2,000 × 6) |
Strap 2 |
4,000 lbs/inch |
24,000 lbs (4,000 × 6) |
Strap 3 |
6,000 lbs/inch |
36,000 lbs (6,000 × 6) |
Now, if we double the layers of webbing, the Minimum Break Strength doubles:
Tow Strap (Double-Ply) |
Minimum Break Strength (MBS) |
Strap 1 (2-Ply) |
24,000 lbs |
Strap 2 (2-Ply) |
48,000 lbs |
Strap 3 (2-Ply) |
72,000 lbs |
Each additional layer of webbing increases strength, making multi-layer straps ideal for extreme loads.
How Webbing Width Affects Strength
The width of a tow strap plays a crucial role in its overall strength. Let’s say we have a webbing material with 4,000 lbs/inch tensile strength:
Webbing Width |
Break Strength (Single-Ply) |
Break Strength (Double-Ply) |
6 inches |
24,000 lbs |
48,000 lbs |
8 inches |
32,000 lbs |
64,000 lbs |
12 inches |
48,000 lbs |
96,000 lbs |
A wider tow strap distributes force more evenly, reducing stress concentration points and enhancing durability.

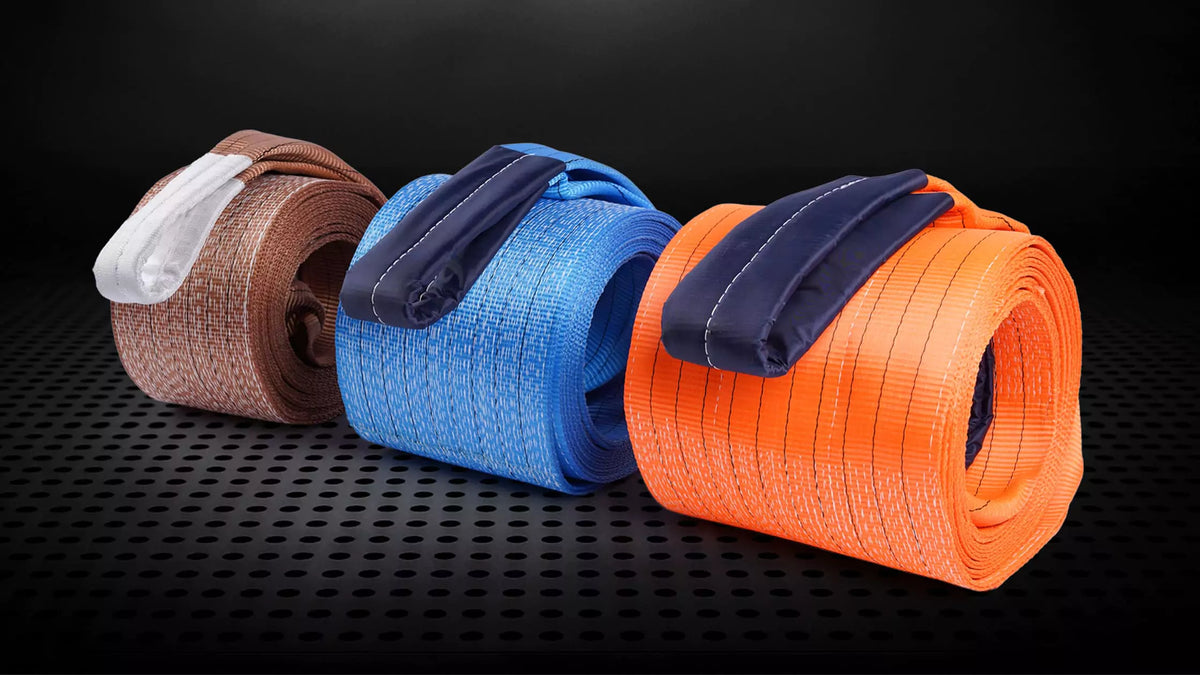

Example: Dawnerz 200,000 lb Tow Strap
Take our Dawnerz 20 ft and 30 ft Heavy-Duty Tow Straps, which feature:
-
11.8-inch webbing width
-
Two layers of polyester webbing
- Massive 200,000 lb breaking strength
This wider, reinforced construction ensures maximum strength and reliability in heavy-duty towing applications.
Tow Strap Strength by Application
The type of tow strap you need depends on the job. Here’s a quick comparison:
Tow Strap Type |
Typical Break Strength |
Best For |
Car Tow Straps |
3,000 – 5,000 lbs |
Light-duty towing |
Heavy-Duty Tow Straps |
70,000 – 200,000 lbs |
Trucks, tractors, off-road |
Extreme-Duty Tow Straps |
260,000 – 380,000 lbs |
Construction, mining, oversized vehicles |
Dawnerz offers a full range of high-strength tow straps for agriculture, semi-trucks, construction, and mining. No matter the task, we provide top-grade polyester webbing designed for maximum durability.
How Much Weight Can A Tow Strap Pull?
The weight capacity of a tow strap depends on its design and intended use:
- Car tow straps: 3,000 – 5,000 lbs
- Heavy-Duty Tow Straps: Up to 380,000 lbs for extreme towing
Using high-grade materials, proper width, and reinforced stitching improves a tow strap’s Minimum Break Strength (MBS) and durability.
