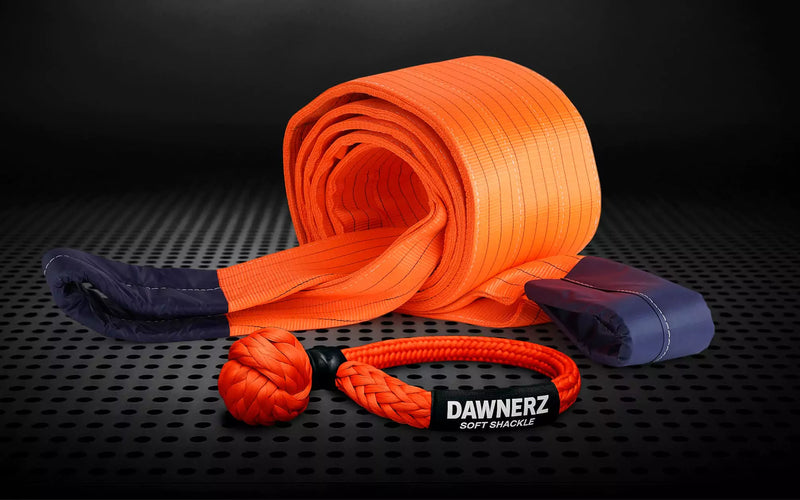

Heavy Equipment Tow Straps & Synthetic Shackles

Dawnerz heavy-duty tow straps are manufactured from high-strength polyester webbing and manufactured in 2-ply or 4-ply constructions, with MBS capacities from 70,000 lb to 380,000 lb.

The straps use large loop eyes to make attachment easier on large, heavy or awkward recovery points. The wider eye construction also helps prevent the webbing from bunching at the connection point.

Polyester provides low stretch, making these straps suited to controlled vehicle and equipment recovery where a more stable connection is preferred.

Our recovery soft shackles provide a lightweight, flexible connection option for compatible recovery points and tow straps, with options including both a 100,000 lb soft shackle and 200,000 lb soft shackle.

Synthetic Soft Shackle Sizing & Ratings

Product ID
Diameter
Closed Loop Length
Material
Construction
MBS (lbs)
WLL 3:1 (lbs)
WLL 5:1 (lbs)
SS-100000-17-GR01
3/4"
17"
UHMWPE
12-Strand
100,000
33,333
20,000
SS-200000-22-GR01
1"
22"
UHMWPE
12-Strand
200,000
66,667
40,000

MBS is established through testing under controlled conditions using a new, unused product. Actual recovery conditions can place different loads on the strap or soft shackle

Tow Strap Dimensions & Ratings

Product ID
Length
Width
Color
Ply Count
MBS (lbs)
WLL 3:1 (lbs)
WLL 5:1 (lbs)
HDTS-70000-20-GR01
HDTS-70000-30-GR01
20 ft
30 ft
4.7"
Grey
2 ply
70,000
23,333
14,000
HDTS-85000-20-RE01
HDTS-85000-30-RE01
20 ft
30 ft
5.9"
Red
2 ply
85,000
28,333
17,000
HDTS-100000-20-BR01
HDTS-100000-30-BR01
20 ft
30 ft
7.1"
Brown
2 ply
100,000
33,333
20,000
HDTS-180000-20-OR01
HDTS-180000-30-OR01
20 ft
30 ft
11.8"
Orange
2 ply
180,000
60,000
36,000
HDTS-380000-30-OR01
30 ft
11.8"
Orange
4 ply
380,000
126,667
76,000
