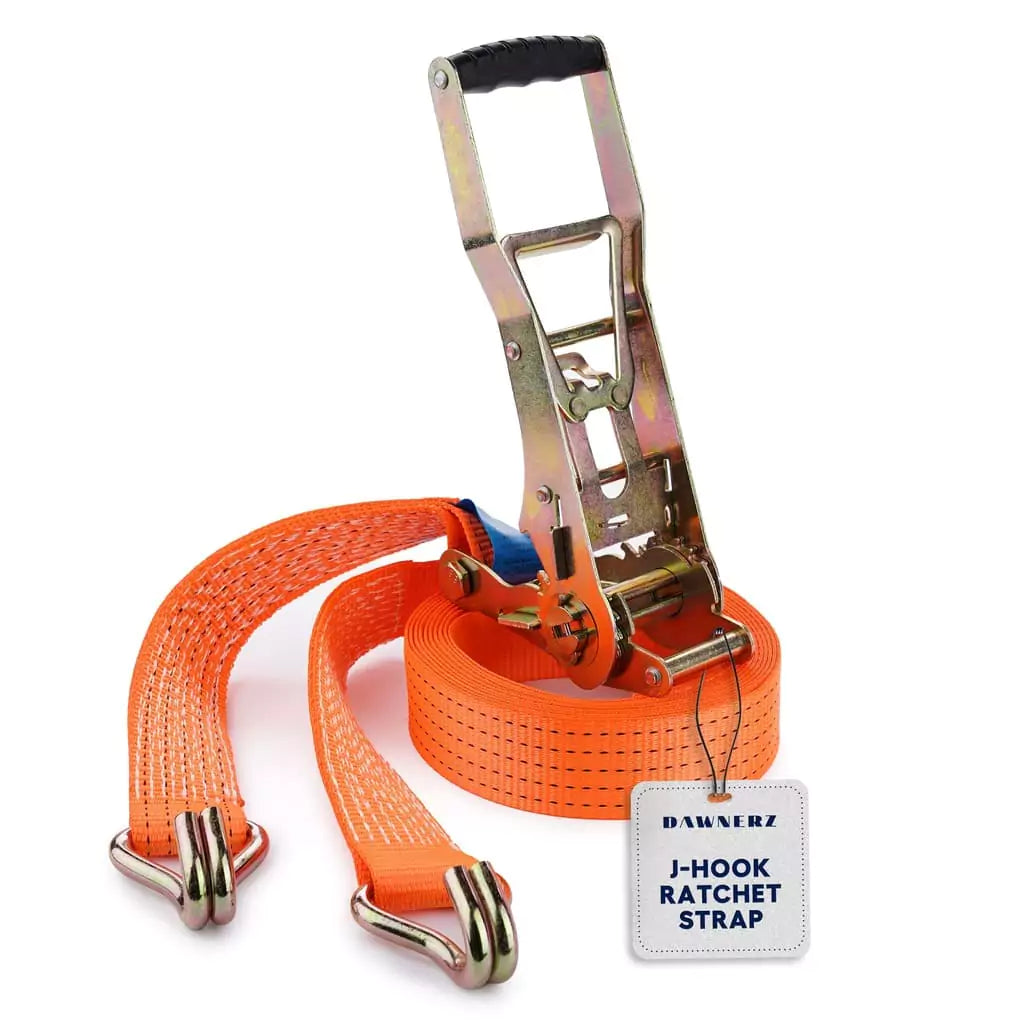

3 Inch Heavy Duty Ratchet Strap With Wire J Hooks
Quick Specs
| Working Load Limit (WLL): 5,500 lbs. | Break Strength: 16,500 lbs. |
| Width: 3" | Length: 30' | 40' |
| Material: Polyester Webbing | Color: Orange |
22,000 lb break strength | 7,333 lb WLL
Rust-resistant zinc-coated J-hooks
Heavy-duty polyester webbing
Resists mold, moisture, and UV
Easy to use, even in tight spaces
Clearly labeled for load rating compliance
WARNING: California’s Proposition 65
Labels on and packing slips in this package can expose you to chemicals including Bisphenol S (BPS) which is known to the State of California to cause reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Details
Built for serious loads and serious operators, the Dawnerz 3-Inch Heavy Duty Ratchet Strap is designed for demanding commercial use. With a working load limit (WLL) of 5,500 lbs (2,495 kg) and a minimum break strength of 16,500 lbs, this strap is trusted by equipment haulers, flatbed operators, and industrial fleets across North America.

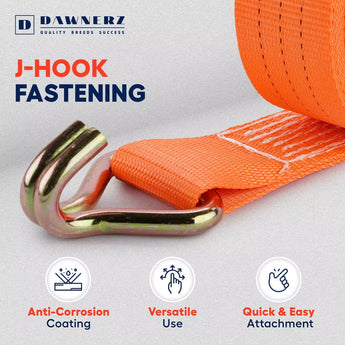

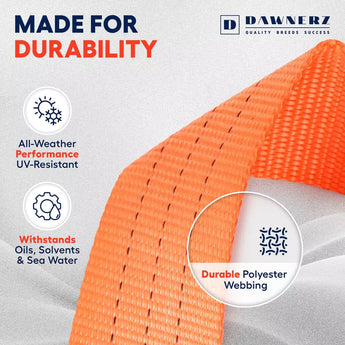

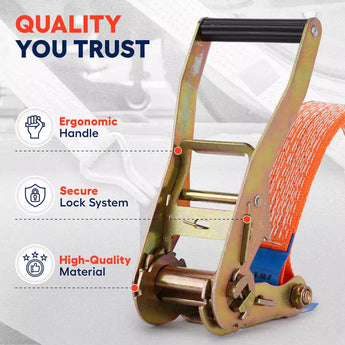

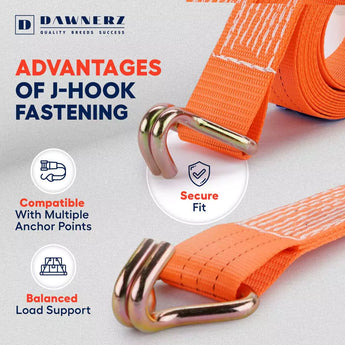

Constructed with high-tenacity polyester webbing, it offers low stretch under tension, and long-term reliability in extreme working conditions. The 15.6" fixed end provides optimal control for consistent tensioning, while the long-handle ratchet delivers maximum torque with minimal effort. Zinc-coated wire J-hooks offer a strong, corrosion-resistant connection point that won’t quit.
Each assembly is clearly tagged with both WLL and MBS, ensuring fast, confident inspections and legal clarity on the job.
Ideal for: Heavy equipment transport, industrial cargo, flatbed freight, and any high-load scenario where strength and regulatory confidence are non-negotiable.
| Assembly Break Strength: 16,500 lbs. | Working Load Limit (WLL): 5,500 lbs. |
| Webbing Break Strength: 16,500 lbs. | Safety Factor: 3:1 |
| Width: 3" | Length: 30' | 40' |
| Fixed End Length: 15.6" | Weight: 13.38 lbs. (30') | 14.22 lbs. (40') |
| Material: Polyester Webbing | Color: Orange |
| Ratchet Handle: Standard | End Fitting: Wire Hook / Double J-Hook |
Safety Notice
WARNING: Use only by trained and competent personnel. It is the operator’s responsibility to select the correct type, quantity, and configuration of tie-downs for the load. Inspect all straps before each use. Immediately discard and replace any strap that shows cuts, excessive wear, or damage.
Webbing must be protected from sharp or abrasive surfaces. Do not use “cheater bars” or unauthorized leverage devices on ratchet or winch mechanisms — doing so may cause serious injury or product failure.
Dawnerz straps are rated for safe operation between +194°F (+90°C) and −40°F (−40°C). Store straps out of direct sunlight and away from chemicals when not in use. Ensure the load is stable before tensioning or releasing any strap assembly.
Ratchet Strap Comparison Chart
| Feature | 2 Inch | 3 Inch | 4 Inch |
| Working Load Limit (WLL) | 3,666 lbs | 5,500 lbs | 7,333 lbs |
| Break Strength | 11,000 lbs | 16,500 lbs | 22,000 lbs |
| Webbing Width | 2" | 3" | 4" |
| Best For | Light-to-mid loads | Flatbeds & equipment | Oversized machinery |
| Lengths Available | 20' / 30' | 30' / 40' | 30' / 40' |
2 Inch Heavy Duty Ratchet Strap
Shop Now
Heavy Duty Ratchet Straps
View Collection
4 Inch Heavy Duty Ratchet Strap
Shop Now
Resources
Overview
Ratchet straps are critical for securing cargo safely across a wide range of industries. When used correctly, they help prevent load shifts, ensure compliance, and reduce risk during transport.
However, improper use or poor maintenance can lead to premature wear, equipment failure, and safety hazards. Following both WSTDA and manufacturer guidelines is essential for maximizing the lifespan and reliability of your tie-downs.
For in-depth maintenance and safety information, refer to the resource links above or consult official WSTDA documentation.
For usage guidelines, inspection checklists, and safety bulletins, visit the Dawnerz Safety Center.
Before using Dawnerz Ratchet Straps, read and understand all product warnings and instructions provided by the manufacturer. Always follow DOT (Department of Transportation), FMCSA (Federal Motor Carrier Safety Administration), WSTDA (Web Sling & Tie Down Association), and all other applicable industry regulations to ensure the safe and proper use of ratchet straps for securing loads during transportation.
Failure to adhere to regulations may result in cargo shifting, equipment damage, or serious injury. Always ensure proper tension and securement before transport to avoid accidents or penalties.
