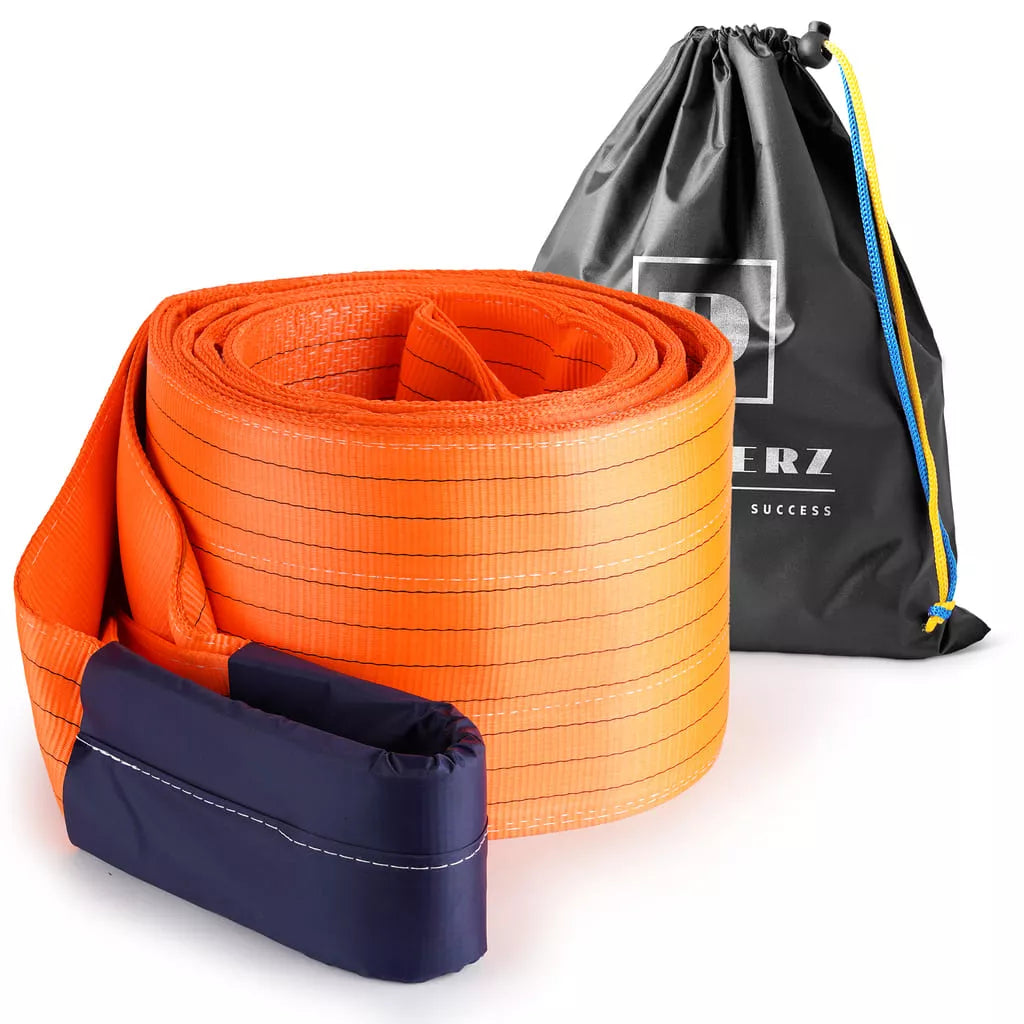

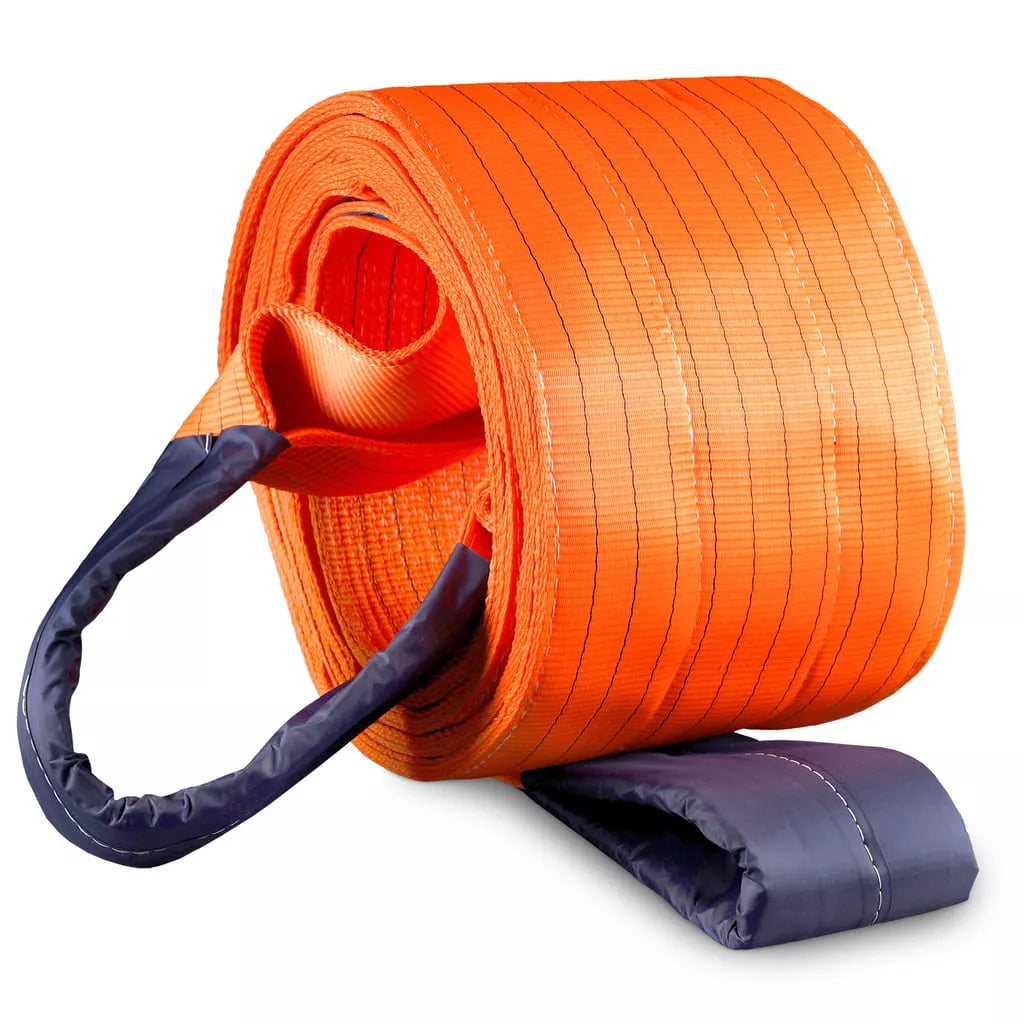

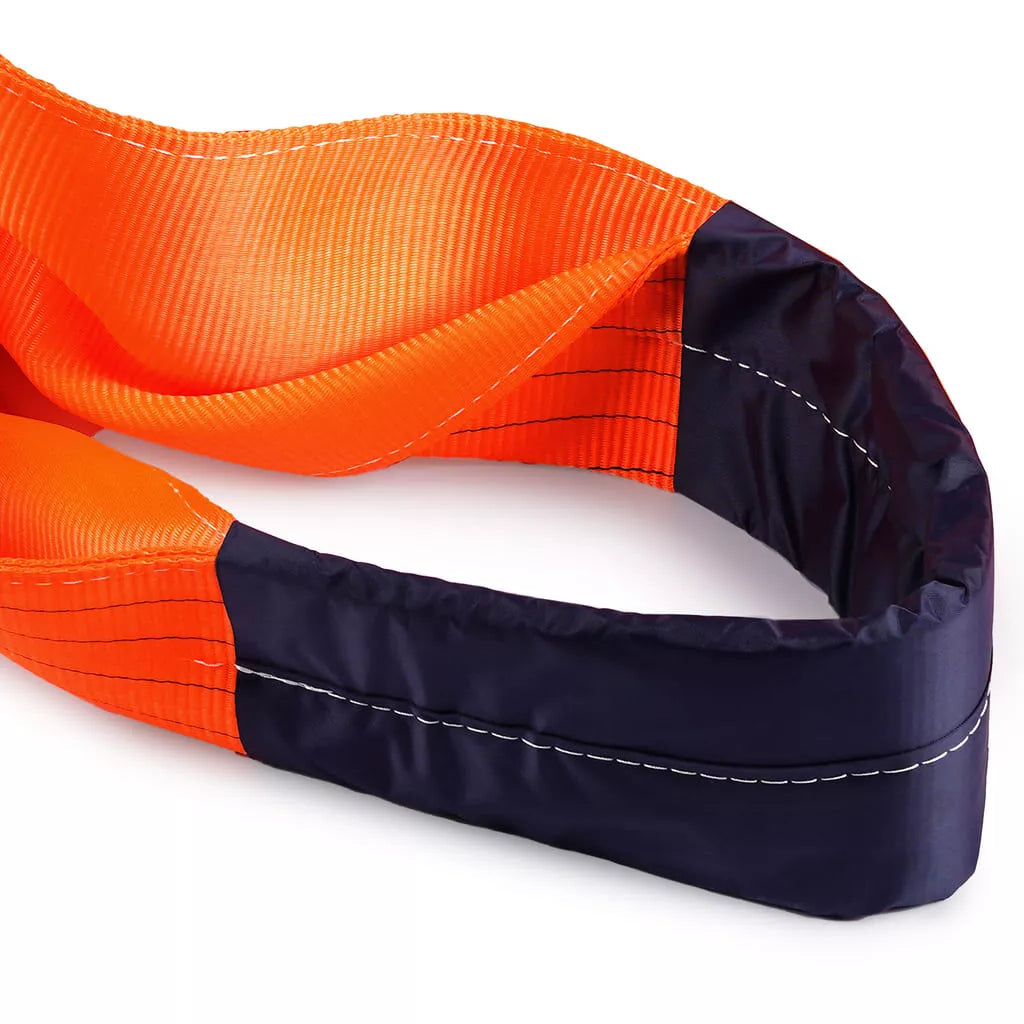

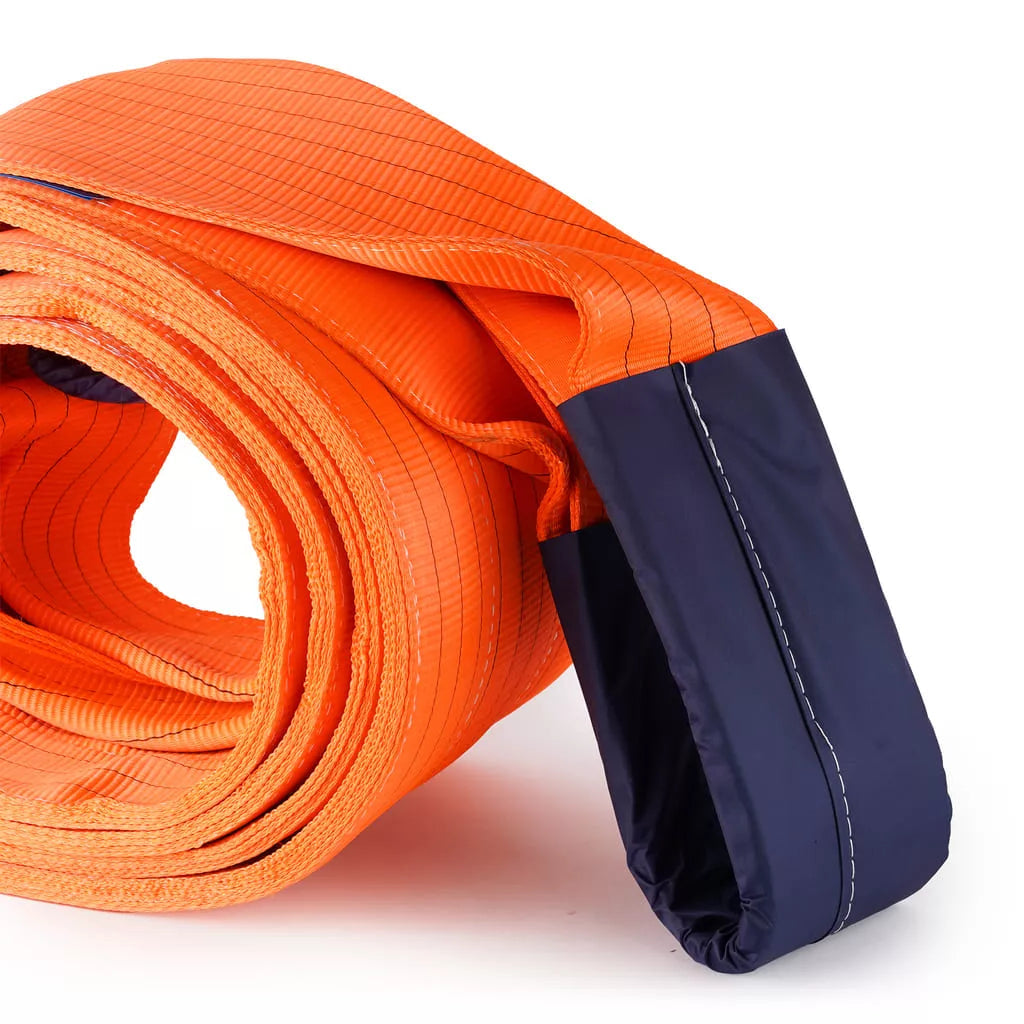

Recovery Tow Strap - 380,000 lb Break Strength
- Minimum Breaking Strength: 380,000 lbs
- Working Load Limit (WLL 3.1): 126,666 lbs
- Working Load Limit (WLL 5.1): 76,000 lbs
- Class 7 Polyester Webbing
- Multi-use: Towing, Recovery, Winch Extension, V Bridle
Couldn't load pickup availability
|
From 2 units
−5%
From 10 units
−8%
From 20 units
P.O.A
|
Volume Discount Available
Request a Quote
|
Product and User Safety Information
Suitable Vehicle Types
- IH Quadtrac / Xerion 12.650
- Cat D7 - D9 Dozers
- Articulated Dump Trucks A35 - A60
- Boom Trucks and Rough Terrain Cranes
For vehicles with a drawbar pull / GVW of upto 126,333 lbs
Product Description
380,000 lb MBS Tow / Recovery Strap
Extreme recovery operations require a system that can manage the highest levels of pulling force while maintaining control.
This 380,000 lb tow strap is matched to large dozers, mining equipment, and 600+ HP tractors. These machines can generate drawbar pull from 60,000 lb to over 100,000 lbs, requiring a strap with sufficient capacity to maintain a safe working margin.
The 4-ply polyester construction allows for controlled, high-force traction without introducing instability into the system. This is critical in mining and large-scale earthmoving operations where failure is not an option.
Despite its capacity, the strap remains significantly easier to handle than steel alternatives, allowing faster setup and more efficient deployment.
Key Features
- Designed for extreme heavy equipment and recovery operations
- Ultra-high working load capacity for maximum resistance scenarios
- Polyester webbing maintains controlled force under extreme load
- Designed for static recovery systems only, no kinetic loading
- More efficient and safer to deploy than comparable steel systems
Technical Specifications
Shipping & Returns
- We cover standard shipping on all orders.
- Expedited shipping options are available at checkout for an additional fee.
- Orders are processed and shipped within 3–5 business days.
- 30-day returns available on eligible items, subject to standard return conditions
380,000 lb extreme duty recovery tow straps
Strap Selection & Application Guide
Match Your Tow Strap To The Job
Dawnerz tow straps are designed for controlled static recovery. Selection is based on required drawbar pull (DBP). You need enough pulling force to move the load safely without overloading the system.
Why PES (Polyester Webbing)
Polyester tow straps provide low stretch under load, allowing controlled force transfer. This ensures stable recovery performance and reduces the risk of sudden loading or uncontrolled energy release.
Towing Immobilised Vehicles
Used when a vehicle or machine cannot move under its own power. Suitable for controlled towing of heavy equipment on stable ground using steady, consistent pulling force.
Heavy Recovery & Multi-Vehicle Operations
Designed for extreme load recovery where standard towing setups are not sufficient. Suitable for vehicles with drawbar pull requirements from approximately 60,000 lb (5:1) up to 126,000 lb (3:1).
Common scenarios include loaded dump trucks losing power on steep gradients, large agricultural equipment under load, or heavy vehicles that cannot be moved by a single recovery unit.
In these situations, multiple recovery vehicles or dual strap setups are often required to distribute load and maintain control. Always apply steady, controlled force and avoid any form of shock loading.
THE PROCESS
How Static Recovery Works
Static tow straps are designed for controlled, low-stretch recovery. Force is applied steadily and directly to move the vehicle without sudden loading or snap-back. At this level, recovery planning and load control are critical.
Position & Setup
Select recovery vehicle(s) with sufficient pulling power for the load. Ensure ground conditions can support all recovery vehicles without loss of traction.
Secure Connection
Attach the strap to designated recovery points only. For extreme recoveries, consider dual strap setups to distribute force evenly. Keep all recovery lines straight.
Controlled Pull
Apply slow, steady force across all recovery vehicles. Synchronise movement to avoid uneven loading. Do not jerk, shock load, or allow sudden tension spikes.
Maintain Movement
Keep consistent, controlled tension until the vehicle is fully recovered. Monitor load behaviour throughout and adjust as needed to maintain stability across the system.
Customers also viewed
What You Need to Know
Frequently Asked Questions
Extreme Load Reality
This is not standard towing, a 380K recovery system is used where load resistance, terrain, and vehicle mass exceed conventional capability.
System-Level Recovery Required
In many cases, a single recovery vehicle is insufficient. Dual-vehicle setups or load-sharing configurations may be required to maintain controlled force application.
Controlled Execution Only
Improper setup or shock loading can overload the system. Recovery must be planned, controlled, and continuously monitored throughout the operation.
When is a 380,000 lb strap actually required?
Used for extreme recovery situations involving heavy agricultural, construction, or mining equipment where lower-rated straps cannot safely manage the required drawbar pull.
Is single-vehicle recovery always enough at this rating?
Not always. At this level, recovery may require multiple recovery vehicles or dual-strap configurations to distribute load and maintain controlled force application.
Can this strap be used for towing fully loaded heavy vehicles?
Yes, but only under controlled static recovery conditions. This includes immobilized dump trucks, articulated haulers, and heavy plant equipment under load.
What makes recovery different at this scale?
The primary difference is load management. Recovery must be planned around total system resistance, not just vehicle weight, including gradient, ground resistance, and traction limits.
Can this strap be used alone in all scenarios?
No. In high-resistance conditions, using a single strap or single recovery vehicle may not provide sufficient control or capacity.
What is the critical safety requirement when using this strap?
Controlled force application only. No shock loading, no sudden acceleration, and continuous monitoring of both vehicles throughout the recovery process.
